Here we have a normal base peiner m1300

Hi,

looking at the A 660/1000/1500 DataSheets you see, there was a normal base unit similar to the HC / EC-H series. You find the KUD on top of the first tower piece.

I guess, this was the "normal" version and probably necessary for gaining some highth for getting fitted with the additional tower section for climbing from the bottom side....

If you want to have the 3 datasheet, just send me a PN

[TDK1980 180]

@djlivus: Sure you posted an 800 HC???Looks more than an 550 or 630....the 800 has the cabin outside the tower,or am i wrong???

On the Liebherr Homepage there are some datasheet...

[djlivus 0]

@djlivus: Sure you posted an 800 HC???Looks more than an 550 or 630....the 800 has the cabin outside the tower,or am i wrong???

On the Liebherr Homepage there are some datasheet...

@TDK1980: No, that is 800HC....it is an old one. I saw the data sheet for the new 800HC and you seem to be right, the cab is side mounted, but in the past thing were different. See also this document from rodson. Also see the data sheet for 550HC. The tower is only 2.45, or the crane in the picture is huge-tower is 4 meters for sure.

ad1321.pdf

550HC_20.pdf

bearbeitet 3. März 2010 von djlivus

[djlivus 0]

Hi,

looking at the A 660/1000/1500 DataSheets you see, there was a normal base unit similar to the HC / EC-H series. You find the KUD on top of the first tower piece.

I guess, this was the "normal" version and probably necessary for gaining some highth for getting fitted with the additional tower section for climbing from the bottom side....

If you want to have the 3 datasheet, just send me a PN

@Stephan1964: I think you are right, I just have looked at 1500A data sheet. It seems to be a normal base and the unfinished sketch in the right depicts a portal base. I was in error because is strange for a botoom slewing luffer to have such a base with the counterweights at a height of 14 meters bove the ground. So, in the picture I've posted some time ago was a portal version of this crane... bearbeitet 3. März 2010 von djlivus

[djlivus 0]

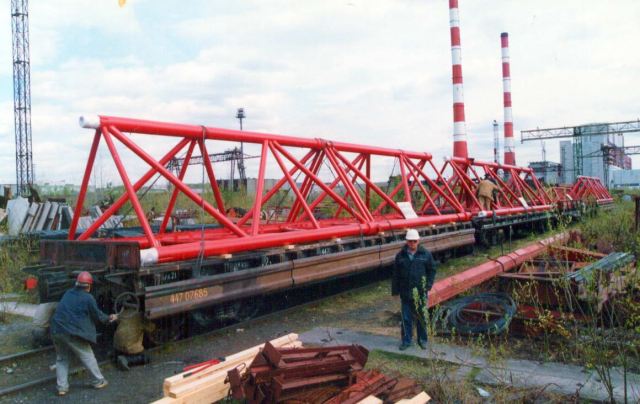

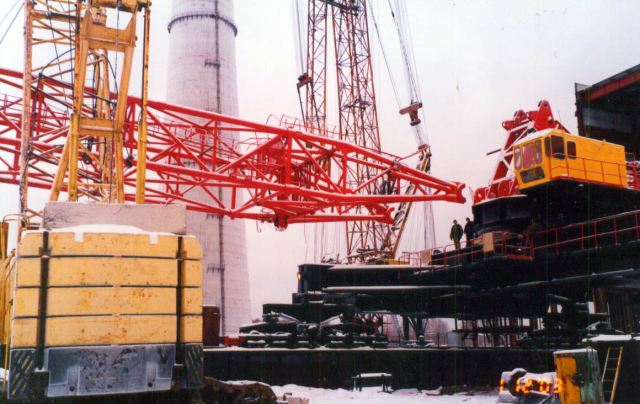

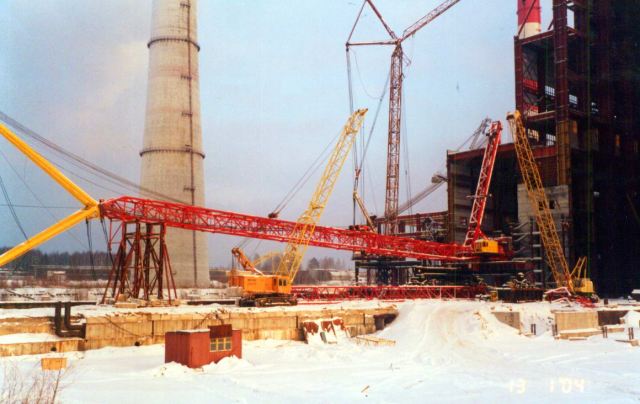

CKP-3500 luffer. Until the advent of favco m2240D luffer this was the bigest luffing tower crane ever manufactured-3500mt. Only qts-3150 and qtz-3450 are realy close. I understood favco m1680D is about 3000mt, too. But would have been much more beautifull if russian had made a classical, luffing jib giant tower, not this kind of hybrid tower crane-it contains many elements loaned from crawler cranes.
