[djlivus 0]

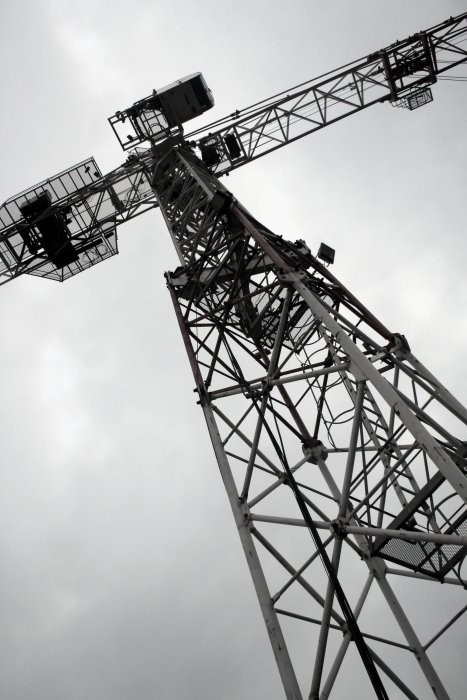

old Potain MD series crane. I don/t remember exactly what kind of MD Potain this crane is. Somwhere between 700-850mt.

[djlivus 0]

@S46: U R right. We have new pictures of Kalsruhe Wilbert on:
http://www.hansebubeforum.de/showtopic.php...7&pagenum=3

[S 46 0]

Yep. Have them on harddisk since yesterday.
Amongst other, now visible details: A spiral stair is used for climbing at the big lower part !
This is a first for me ! ( I thought it was part of the building behind the crane ).
And, did somebody recognize, that they turned around the support for the moveable counterweights ?
This moves their COG nearer to the tower, shurely a reason due to the short Main Jib.
I`ve already included this circumstance in my drawing.
My drawing then shurely needs to be revised for more details and smaller changes, but I don`t see any reason yet to change overall dimensions.
So - let`s wait and see. Perhaps some nice people can take more closer looks and photos of the yet hidden lower part of the portal. Or I `ll have to travel to Karlsruhe by myself.
By the way, I am still wondering what else could be hidden in the container underhang on the machinery deck.
Electronics for shure, look at the ( ugly ) cabling spilling out there. But then there is still ample space inside.
All hoists and motors are outside. So there can be only a few racks in there. Take a look at Wolff`s 1250B for comparison...
A card playing room ? A Bath ? A toilet ? A TV - Room ? Massage Center ? Any ideas ?

[linaprin 1]

By the way, I am still wondering what else could be hidden in the container underhang on the machinery deck.
Electronics for shure, look at the ( ugly ) cabling spilling out there. But then there is still ample space inside.
All hoists and motors are outside. So there can be only a few racks in there. Take a look at Wolff`s 1250B for comparison...
A card playing room ? A Bath ? A toilet ? A TV - Room ? Massage Center ? Any ideas ?

A diesel engine with electric power generator?

[djlivus 0]

Kroll k-1400. A mobile version.

Kroll_K_1400.pdf
