Große Turmdrehkrane

[Hawe 1]

Yes, ...ten years ago Liebherr still had this cranes on the website.
I`m not sure but I think I have a datasheet of this crane somewhere if somebody is interested.

I'm sure there will be interest in these datasheets here on the forum.

Hawe

[djlivus 0]

Could be Liebherr Form A 1500.

I also thought this could be 1000A or 1500A, but I was not sure. In some details it doesn't suit with the drawing from data sheet, but also is true, the picture is not very good, so a complete analysis is not possible.

[djlivus 0]

Peiner TN-1120 tower crane. Height of tower is 86m, boom-76,5m. Base rail gauge-12.5m

[djlivus 0]

In fact , this is a VTN1120, because base is portal type.

[Gast stephan1964]

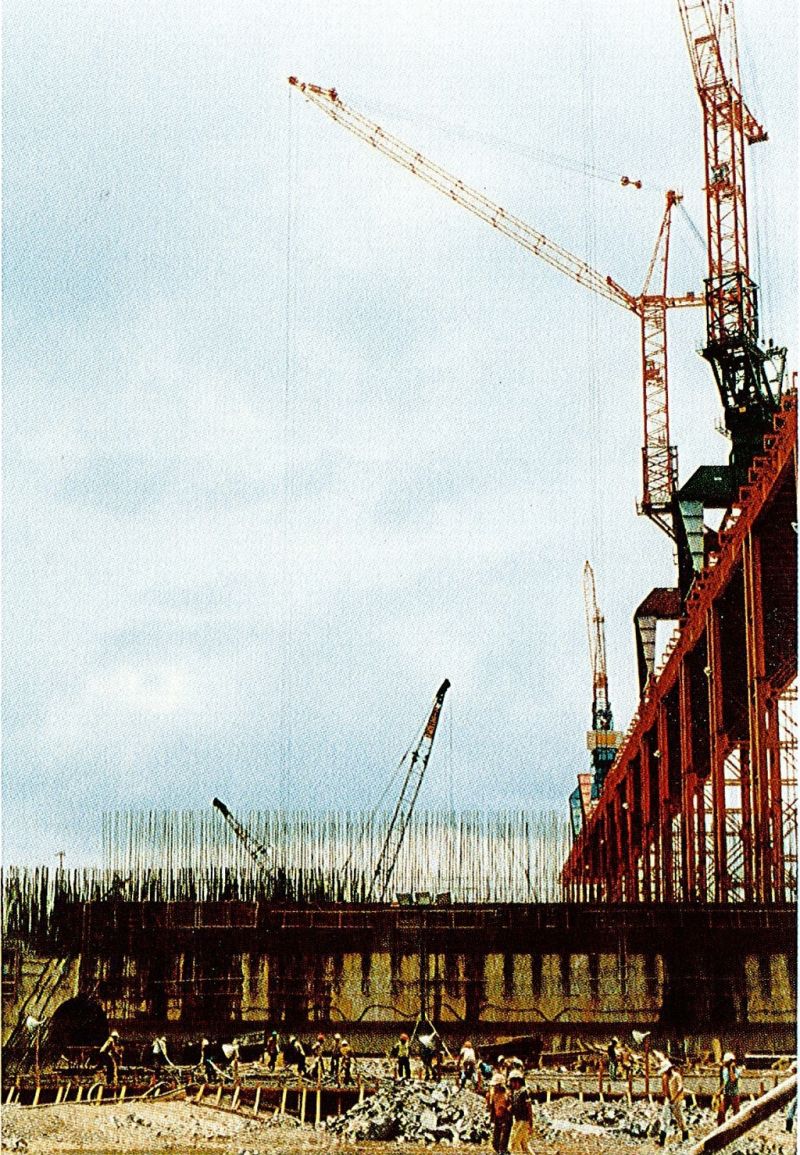

Does anybody know what kind of liebherr is this?

Für mich sieht das aus wie ein 1500A, denn nur der 1500A hat auf dem DataSheet/Abbildung am Auslegeranlenkpunkt einen zusätzlichen A-Bock, der an der Turmspitze angeseilt ist. beim 660A und 1000A fehlt dieser

Weiß es jemand besser ?
