Liebherr 3150HC. One of the greatest tower cranes from liebherr. Standard hook height for rail going version is 96.5 m, but as stated in old data sheet issued by Liebherr ,on request the height can be larger. For instance one of the liebherr 3150 made for norway marine exploatation has a height under hook of about 107m on static base. Total height is 128m and total weight is about 830 tonnes.

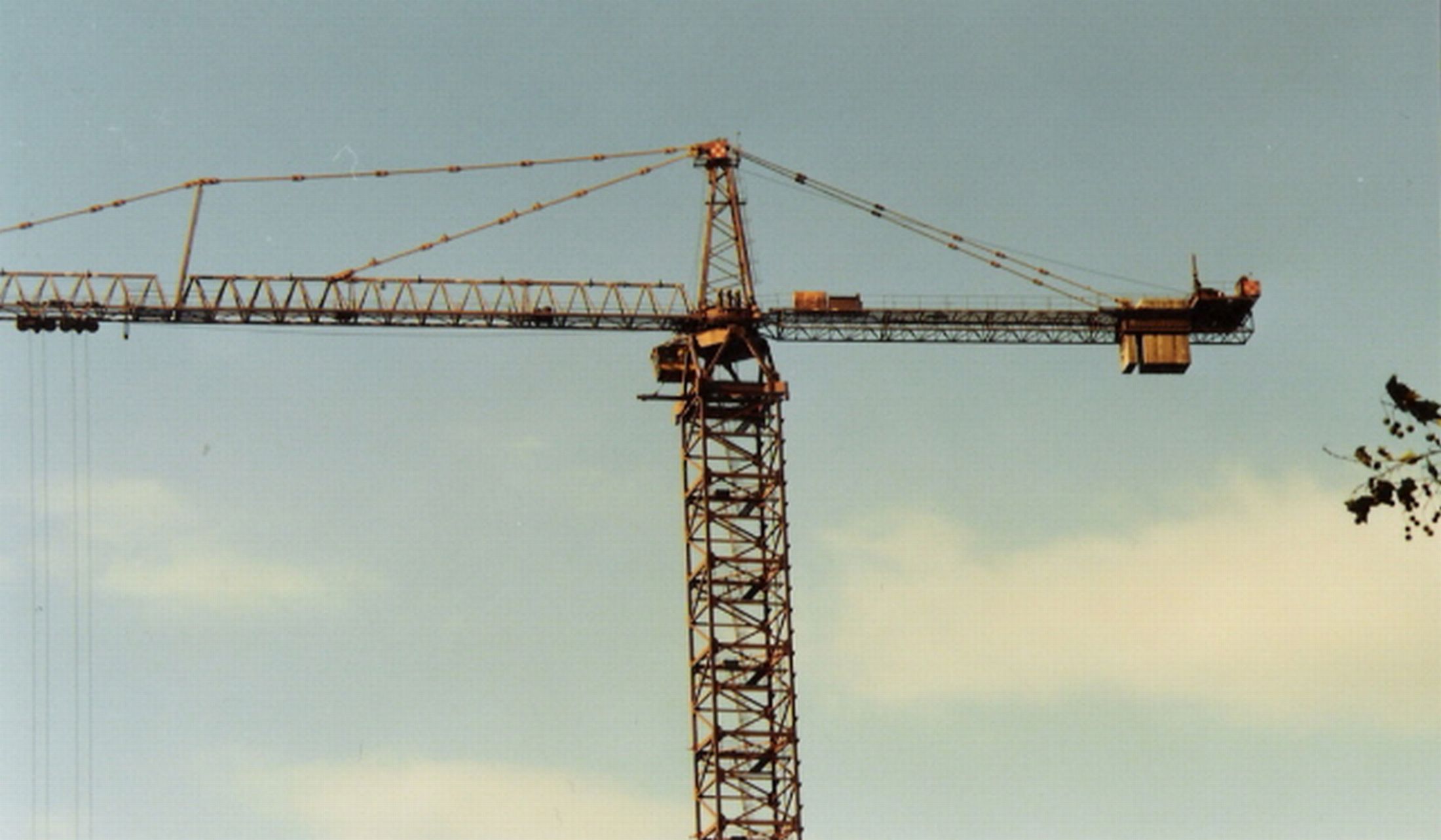

The crane in photo is a standard 3150 HC with a hook height of 96,5m made for Thyssen steel factory. Height to the jib is 102.7m, and total height is 117.5m. Maximum load -60 tonnes. It was manufactured in 1986-1987. Mast section is 5.5x5.5m.

2009/08/post-14539-1250015987_thumb.jpg

Share this post


Link to post
Share on other sites

Registriere dich um diese Anzeige nicht mehr zu sehen.

djlivus

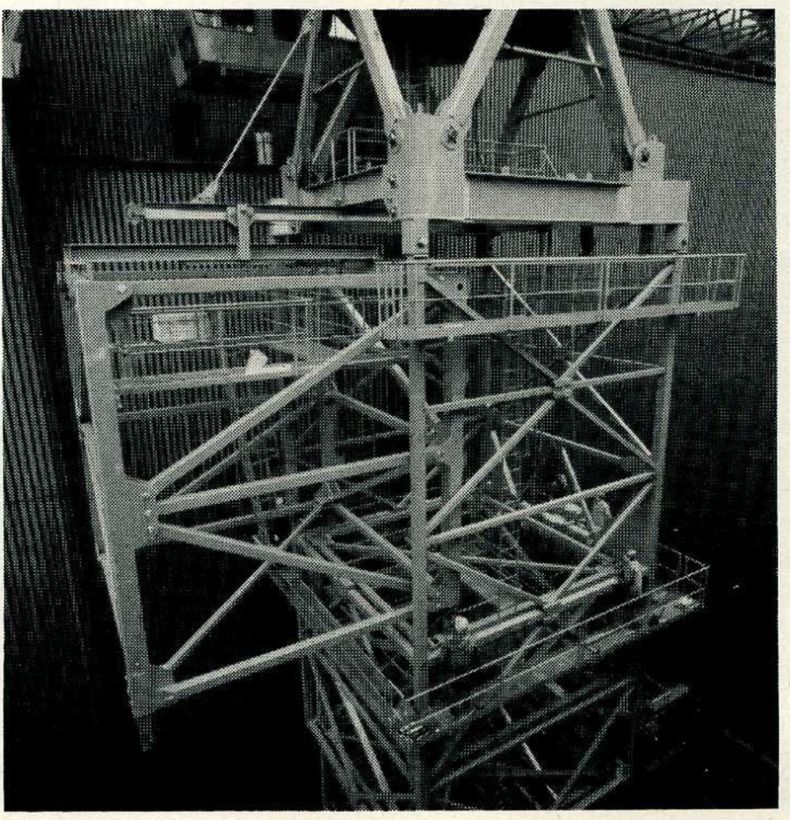

The same Liebherr from hyssen Stahl AG-in 1987. Weight of steel structure of this crane is 560 tonnes. The beams (elements) of mast are 25 cm x 2 6cm. This is enormous! That is why liebherr big tower cranes weigh so much- for instance the new 4000HC 100 made for Koreea has a weight of 960 tonnes at a height of only 75m under hook. This very rare picture is from Mr. Pius Meyer from www.kran-info.ch

2009/08/post-14539-1250016171_thumb.jpg

Edited by djlivus

Share this post


Link to post
Share on other sites
S 46

Potain MD 22500.
U N B E L I V A B L E.
More ? wave.gif
But I think I can bring a new order in your chart of the big ones.
With a very contemporary model. ( ok, probably not railgoing at that dimension.
But at a max. freestanding height of...over 80m
- and then definitly over 155m ( with the max jib at maximum angle ). What about...179meters?
Interested ? Then watch this space.
Or can anyone already guess, what I am talking about ?

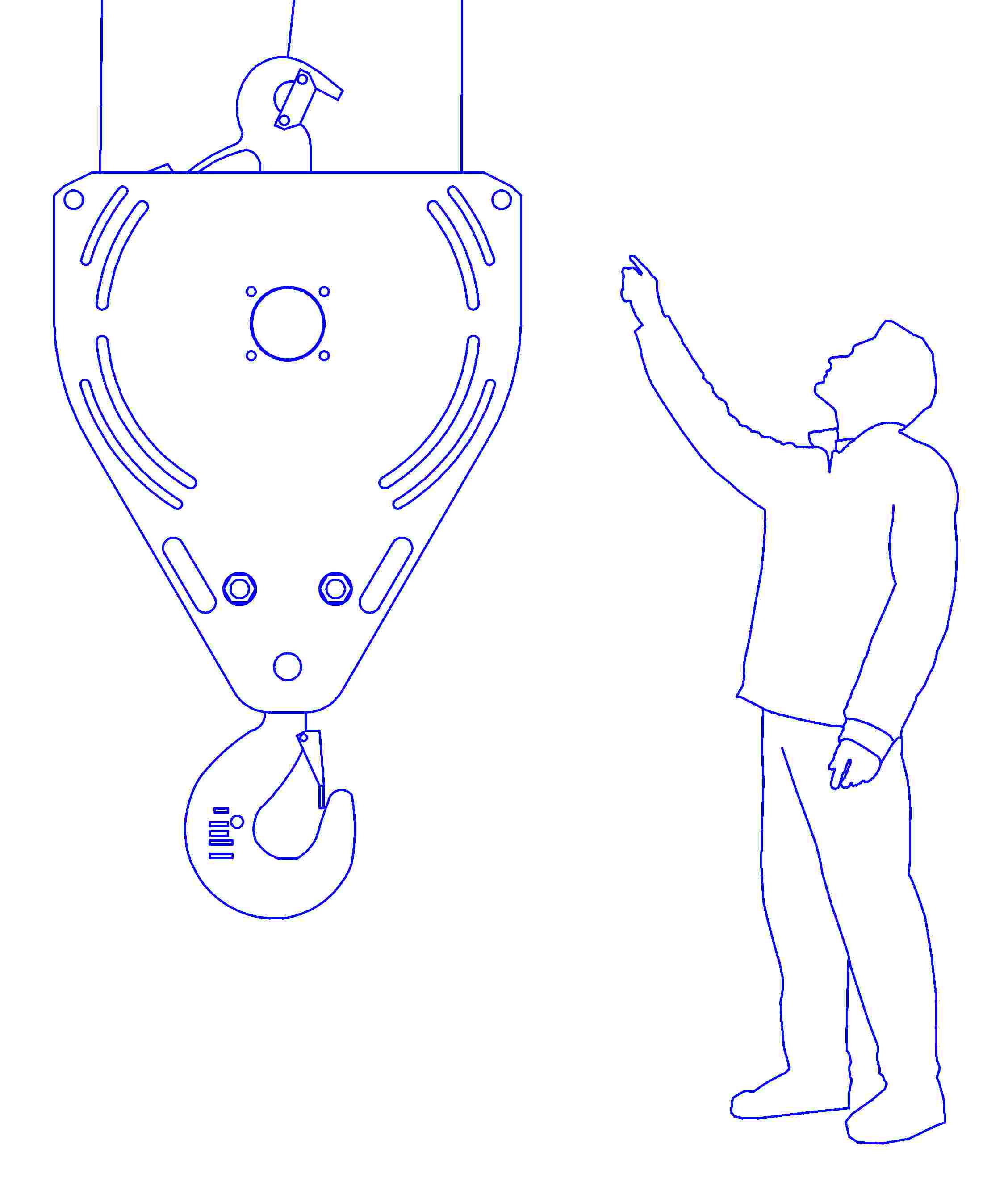

Hint: Here`s the hook:


Share this post


Link to post
Share on other sites
S 46

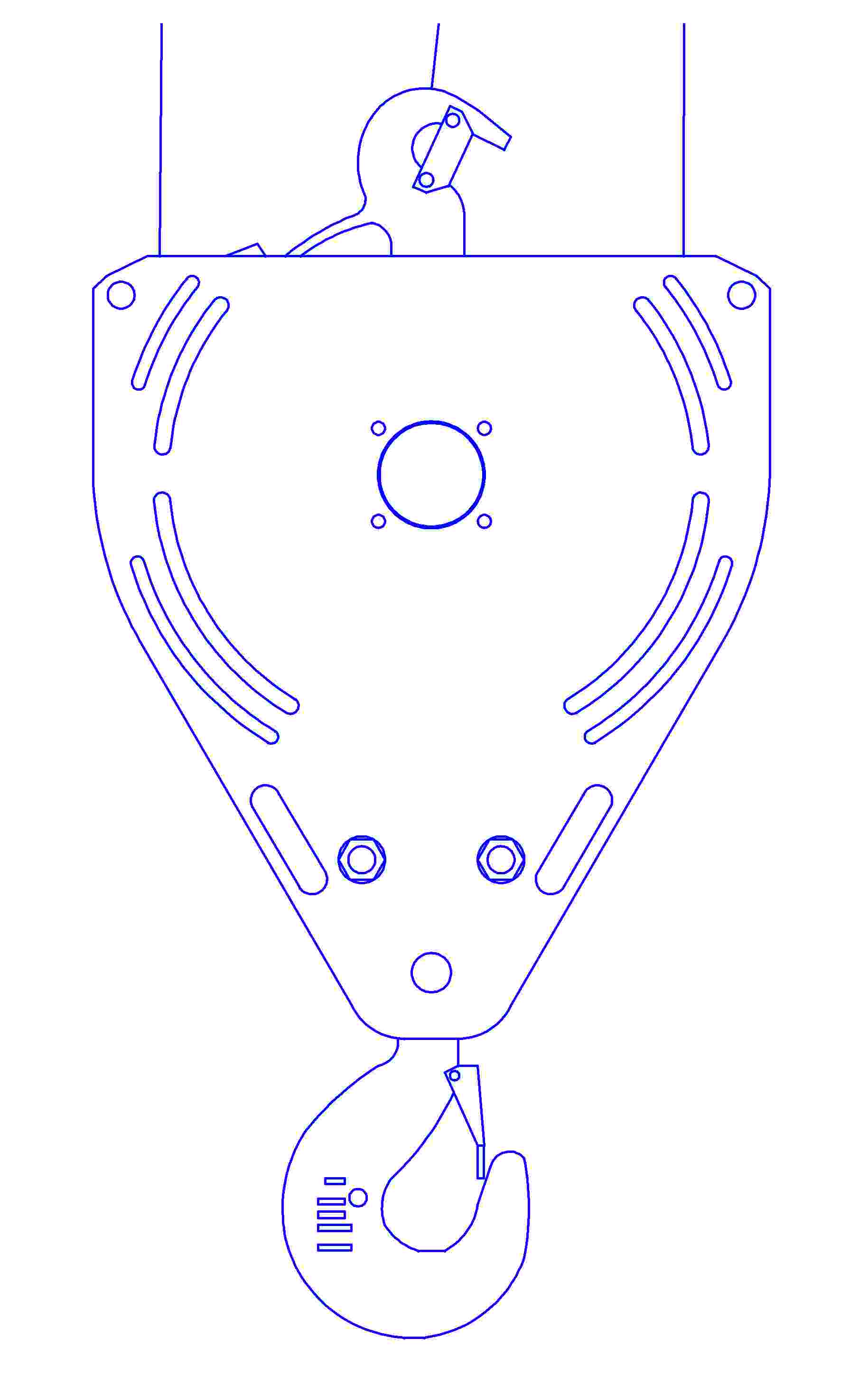

Last Teaser for tonight:
The size - relationship. Of course, there are bigger ones...
But still...
Enjoy.
Who can give an answer ?


Share this post


Link to post
Share on other sites
Michael E.

Last Teaser for tonight:
The size - relationship. Of course, there are bigger ones...
But still...
Enjoy.
Who can give an answer ?






looks like the Hook of the Wolff 1250B whistling.gif
