Große Turmdrehkrane

[djlivus 0]

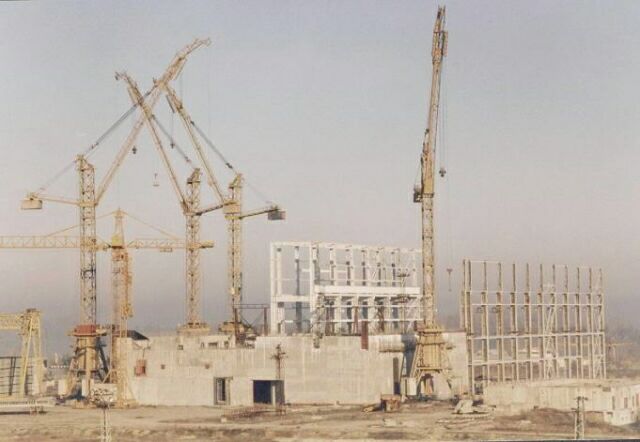

Russian BK series tower cranes with kb674 tower crane at work.

[djlivus 0]

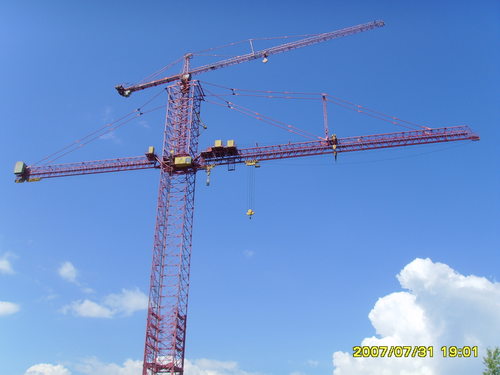

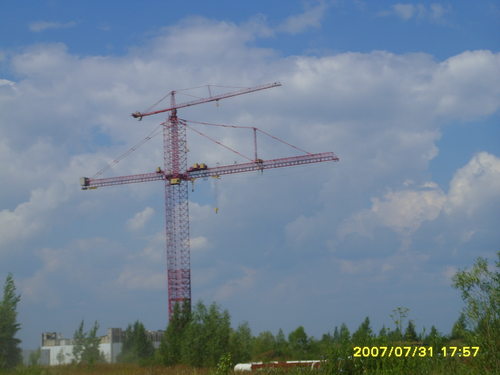

Kroll k10000

[djlivus 0]

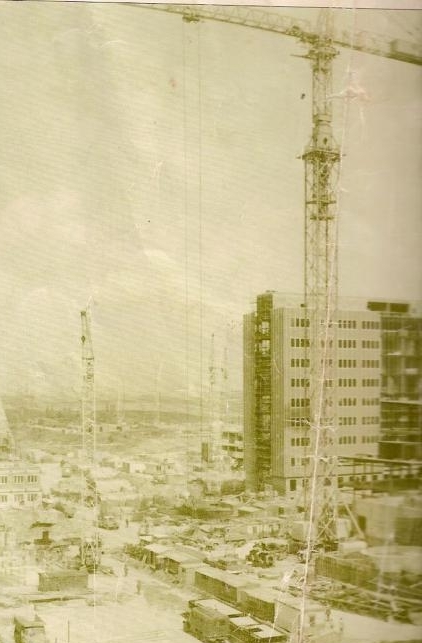

Peiner MK1250 at work

[djlivus 0]

@S46: I have found on my computer a document about MK series and it offer only one general drawing for entire range. A drawing very similar with MK1250. So, it seems that all these cranes , up to mk5000 use the same pattern. But it is not certain, of course. Also it,s hard to determinate the tower system that could be used for these tower. So it's a realy hard task to draw such cranes! Instead I think a god choice fo r your next drawing would be the much noted Potain MD2200 from 1988 with 125 m under hook and 88m jib, and, of course a human for scale

greetings,

djlivus

[djlivus 0]

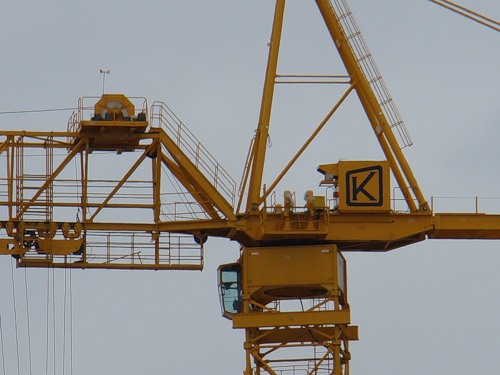

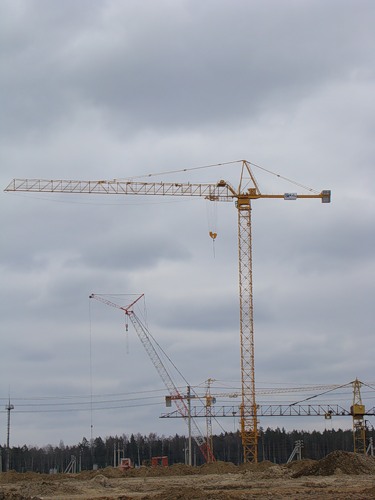

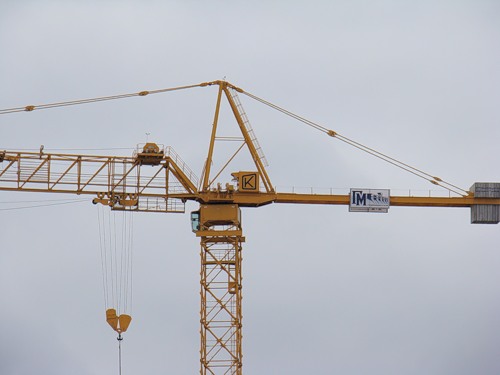

a new kroll K1400

http://ist.my1.ru/forum/4-1334-1
