Große Turmdrehkrane

[djlivus 0]

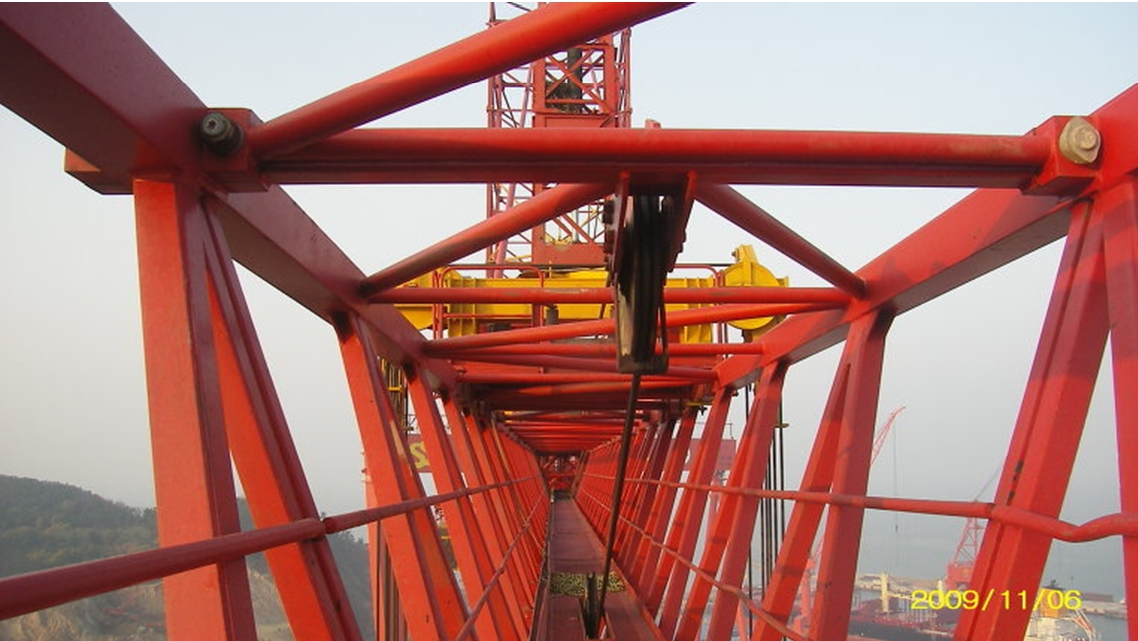

inside the jib. k-10000

[djlivus 0]

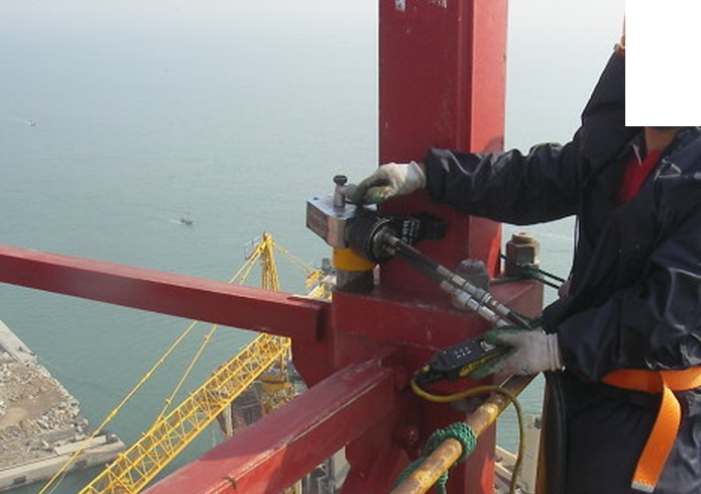

k-10000. Notice the thickness of the mast beams

[S 46 0]

...here`s my first draft ( of a series ) concerning Kroll`s K 2500...
The TC 2 Option misses the remarkable Topmast found on the ascending range ( K3000 and up ).
But ( with reduced loadlimit ), still remarkable, to make it in here.
Comments welcome.

Kroll_K_2500_TC2_Version_Draft1.PDF

[djlivus 0]

@S46: nice crane...here is the static version ....

K_2500.pdf

[S 46 0]

The second draft is about the same crane, as shown by djlivus right before...
K2500 TC2 in a static version

Kroll_K_2500_TC2_Version_Draft2.PDF

Kroll_K_2500_TC2_Version_Draft2.PDF
